How to Identify a Multipoint Door Lock Before Ordering Replacement Parts

Identify multipoint door lock is usually searched for when an old door has no paperwork and the only clues are the faceplate, handle action and measurements. The problem can feel urgent, but the safest and most economical answer is rarely to order the first similar-looking part. Doors and windows are built from interacting pieces of hardware, and one worn or misaligned component can make another part look faulty. This guide is written for buyers who need to order replacement parts with confidence who want a practical way to identify the issue, record the right details and choose a replacement with less guesswork.

To reduce the risk of ordering a near miss, the experts at Locks & Hardware suggest building a small measurement record before comparing replacement locks or gearboxes.

Start With How the Part Is Supposed to Work

Identification is a process of elimination. Brand marks help, but age, discontinued ranges and replacement cases mean the final choice usually depends on a set of measurements and visible locking features. That is why a single symptom can have more than one cause. A stiff handle may be caused by the handle itself, but it may also be caused by a lock case under pressure, a dropped sash, a worn keep or a part that is no longer aligned with the frame. The first useful step is to understand what the component is expected to do when it is working normally.

For multipoint door lock identification, the aim is reliable movement, correct engagement and a secure final position. If the part has to be forced, pulled or held in a particular position, that force is being transferred somewhere else in the system. Over time it can damage screws, springs, spindles, latches, hooks, rollers, bolts or cylinders. A small amount of testing before buying helps you avoid replacing a visible part while leaving the real fault untouched.

Measurements That Decide Compatibility

Before removing parts, take clear photographs from several angles and write down the measurements while the old hardware is still in place. Use a steel rule or tape, measure from centre to centre where appropriate and keep the inside and outside of the door separate in your notes. If a part has brand marks, stamps or codes, photograph them before cleaning or handling the component.

For this topic, the most useful details to record are brand or code on the faceplate, backset, PZ and distance between spindle and each locking point. Also check overall strip length, faceplate profile and gearbox screw centres. These details are more reliable than a quick visual match because many UK hardware ranges share similar shapes while using different internal dimensions.

• Brand or code on the faceplate
• Backset
• PZ
• Distance between spindle and each locking point
• Overall strip length
• Faceplate profile
• Gearbox screw centres

It is also worth keeping the old screws, spindle, cylinder retaining screw or fitting pack until the new part has been tested. Small fixings can reveal whether an old repair has already changed the door, and they may help you spot why the original part failed. If the old part has been forced, bent or filed, record that too because the damage may be evidence of an alignment issue rather than simple wear.

Fault Signs to Check Before Ordering

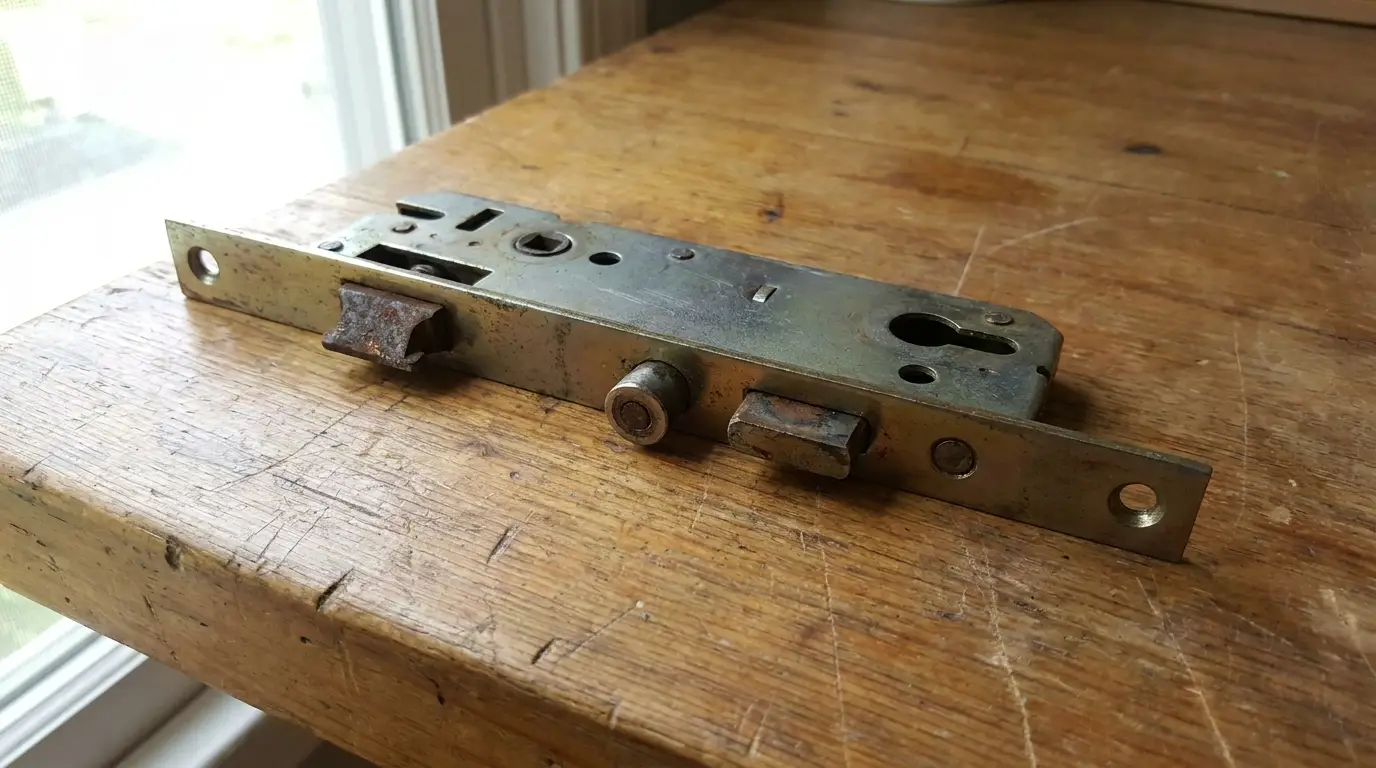

The most common warning signs include uncertain brand markings, mismatched keeps from an old repair and a non-standard PZ. You may also see worn rollers that hide their original shape and a centre case that has been replaced before. The key is to test the part in the least loaded condition first. For doors, that often means testing with the door open before testing it closed. For windows, it can mean operating the handle while the sash is open and supported.

If the hardware works freely when open but struggles when closed, the part may not be the only fault. Alignment, hinge movement, gasket compression, keep position, worn rollers or frame distortion may be putting pressure on the mechanism. If the same problem appears when the door or window is open, the internal part is more likely to be worn, damaged or incorrectly assembled. This simple comparison can save a great deal of unnecessary part swapping.

• Uncertain brand markings
• Mismatched keeps from an old repair
• A non-standard PZ
• Worn rollers that hide their original shape
• A centre case that has been replaced before

Common Mistakes That Cause Returns

The useful missing step is documentation. Taking photos of the faceplate, gearbox, latch, hooks and keeps before ordering makes comparison far easier and protects against memory errors. It is especially important with replacement security hardware because the difference between a correct part and a near match may be only a few millimetres. Near matches can sometimes be forced into place, but they often leave the door harder to operate, reduce the service life of the replacement and create another repair later.

Avoid searching only by the door manufacturer, counting rollers but not measuring their positions and mixing old and new range names. Also watch out for removing the strip without photographing it first. A replacement should restore smooth operation; it should not require extra force, packing, filing or repeated adjustment just to make the door close. If it does, step back and check the measurements and alignment again.

• Searching only by the door manufacturer
• Counting rollers but not measuring their positions
• Mixing old and new range names
• Removing the strip without photographing it first

Choosing and Fitting the Replacement Sensibly

When choosing multipoint door lock identification, start with function, then dimensions, then finish. Function means the way the door or window is used and the job the component performs. Dimensions confirm whether the new part will physically fit. Finish is important for appearance, but it should come after compatibility. This order prevents the common situation where a part looks right in chrome, white, brass or black but does not line up with the lock, spindle, cylinder, keep or frame.

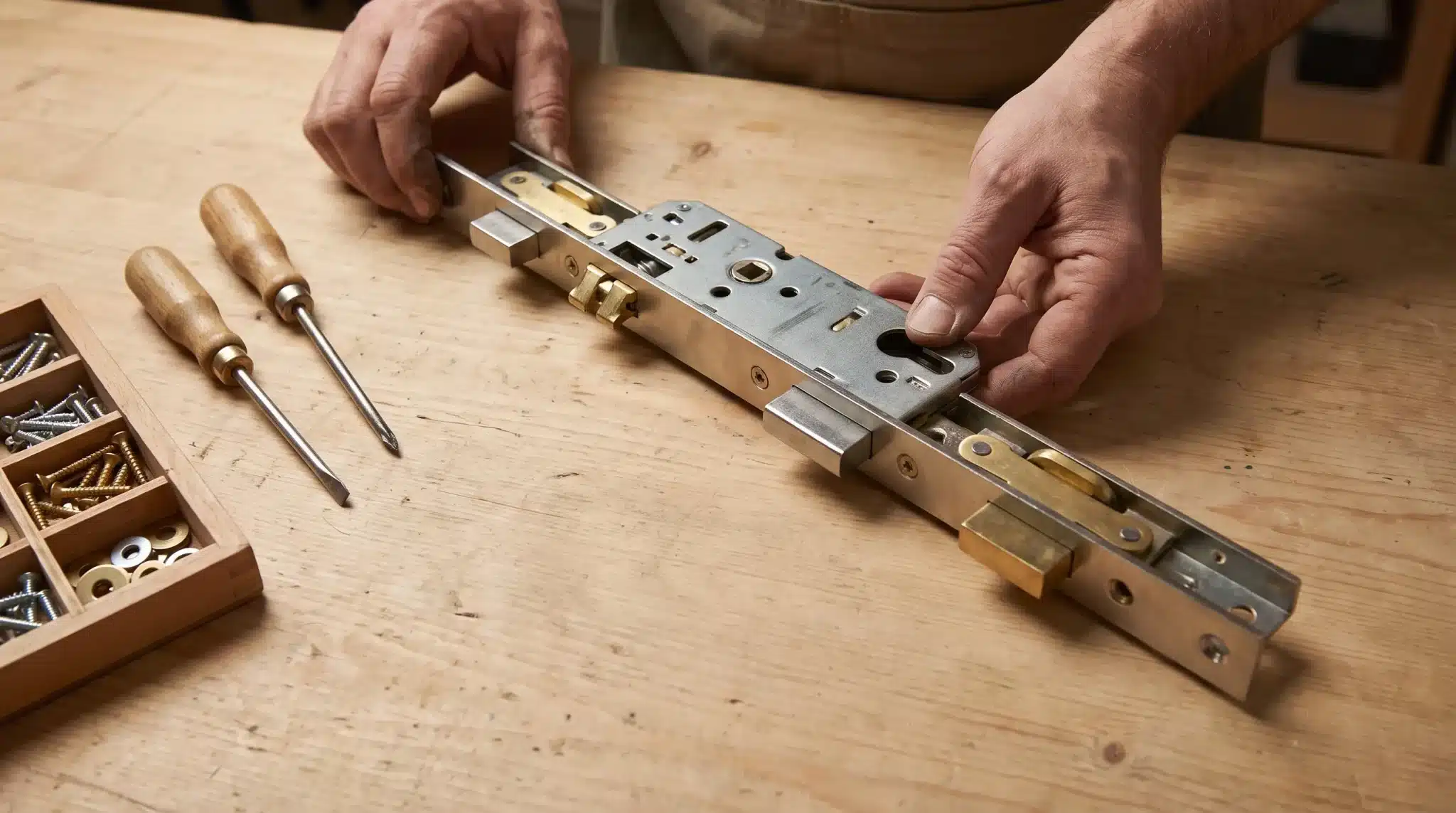

If you are fitting the part yourself, work methodically. Support the door or sash where needed, keep screws organised, do not overtighten fixings and test the operation at each stage. Tighten lightly first, check movement, then tighten evenly. A handle or lock case that works until the final screw is tightened may be binding against the door skin or sitting slightly out of line. A few minutes of careful testing is better than repeated forcing.

Security hardware should be judged by the finished result. The door should close naturally, the latch should meet the keep, the key should turn without excessive pressure and moving parts should not scrape, grind or bounce back. On fire, escape or shared-building doors, the correct answer may also involve standards, certification, inspection records and a competent installer. For those settings, do not treat a general replacement guide as a substitute for compliance advice.

A Final Checklist Before You Buy

• Confirm the fault with the door or window open and closed where possible
• Photograph the old part, faceplate, keeps, fixings and any visible markings
• Measure from centres, not from the edges of holes or backplates
• Record inside and outside orientation before removing cylinders or handed parts
• Check whether alignment, hinges, rollers, gaskets or keeps are contributing to the issue
• Choose the replacement by function and measurement before choosing the finish
• Test the new part gently before final tightening and before relying on it for security

A well-identified lock is easier to replace, easier to explain to a supplier and less likely to result in returns. Treat the old mechanism as your template and record everything before you buy.
