How to Properly Install Your Electric Fence
Installing an electric fence can feel overwhelming when you’re staring at boxes of posts, wire, and mysterious gadgets.
Most people end up with a fence that barely works or constantly trips the circuit breaker. I’ve been there too.
But here’s what I learned after installing dozens of electric fences: there’s a proven system that works every single time. You don’t need special skills or expensive tools. You need the right steps in the right order.
This blog will show you exactly how to install your electric fence properly. You’ll save money, avoid frustration, and end up with a fence that actually keeps your animals where they belong. Let’s start building.
What is Electric Fencing?
Electric fencing is a barrier system that uses controlled electric pulses to keep animals contained or excluded from specific areas. When touched, the fence gives animals a memorable reminder to stay back, encouraging boundary respect without injury.
Key benefits of electric fencing:
- Cost-effective compared to traditional fencing
- Easy to install and modify
- Works for most livestock and wildlife
- Requires minimal maintenance
- Covers large areas efficiently
Electric fences don’t continuously carry electricity. Instead, they pulse about once per second, making them safe for both animals and humans while still being effective as a deterrent.
How Electric Fences Work?
Now that you know what electric fencing is, let me explain the simple process behind it.
The energizer sends electrical pulses through your fence wire once every second. When an animal touches the fence, electricity flows from the wire through the animal’s body into the ground. Ground rods buried in the earth send this electricity back to the energizer, creating a complete circuit.
The animal feels a quick shock that lasts less than one second. It’s uncomfortable but not harmful. After one or two experiences, most animals learn to stay away from the fence completely.
The system only works when the circuit is complete. If your ground rods aren’t installed properly, or if the fence wire breaks somewhere, the shock becomes weak or stops working entirely.
Types of Electric Fences
Choosing the right type of electric fence depends on your specific needs, budget, and property layout. Here are the main options you’ll encounter:
1. Permanent vs Temporary Systems
Permanent electric fences use solid posts driven deep into the ground. These work best for property boundaries, pasture divisions, and long-term animal containment. They withstand weather better and require less frequent adjustments.
Temporary electric fences use lightweight posts that push into the ground by hand. Perfect for rotational grazing, temporary animal containment, or testing fence layouts before permanent installation. You can move them quickly as your needs change.
2. Wired vs Poly Tape/Rope Fencing
Electric wire is the most common choice. It’s durable, conducts electricity well, and costs less than other options. High-tensile wire works best for permanent installations, while lighter gauge wire suits temporary setups.
Poly tape and rope are more visible to animals, reducing accidental contact. The bright colors help train animals to respect boundaries faster. However, they cost more and may not last as long in harsh weather conditions.
3. Solar-Powered vs Mains-Powered Energizers
Solar-powered energizers work anywhere without electrical outlets. They’re perfect for remote pastures, temporary fencing, or areas where running power cables isn’t practical. Modern solar units provide reliable power even on cloudy days.
Mains-powered energizers plug into standard electrical outlets. They deliver consistent power and work better for long fence lines or multiple fence zones. Choose these when you have reliable electricity access near your fence location.
Step-by-Step Electric Fence Installation
Installing an electric fence follows a logical sequence that builds from the ground up. Each step depends on the previous one, so don’t skip ahead or you’ll create problems later.
The process takes most people 4-6 hours for a basic fence setup. Follow these seven steps in order for the best results.
Tools and Materials You’ll Need:
Before starting your electric fence installation, gather all necessary tools and materials. Having everything ready saves time and prevents delays during installation.
| Category | Item | Purpose |
|---|---|---|
| Basic Tools | Wire cutters/strippers | Cut and strip fence wire |
| Hammer or mallet | Drive fence posts | |
| Drill with bits | Make holes for insulators. | |
| Measuring tape | Measure distances accurately | |
| Level | Ensure posts are straight | |
| Safety Equipment | Work gloves | Protect your hands from the wire |
| Safety glasses | Protect your eyes from debris. | |
| Voltage tester | Test fence power safely | |
| Fence Materials | Fence posts | Support the fence structure |
| Insulators | Prevent power loss through posts. | |
| Electric wire/tape | Carry electrical current | |
| Wire tensioners | Keep the wire tight and secure | |
| Electrical Components | Energizer | Generate electrical pulses |
| Ground rods | Complete the electrical circuit. | |
| Ground wire | Connect the energizer to the ground rods. | |
| Warning signs | Alert people to the electric fence |
Choose materials based on your fence type and local conditions. Permanent installations need stronger posts and high-tensile wire, while temporary setups can use lighter materials.

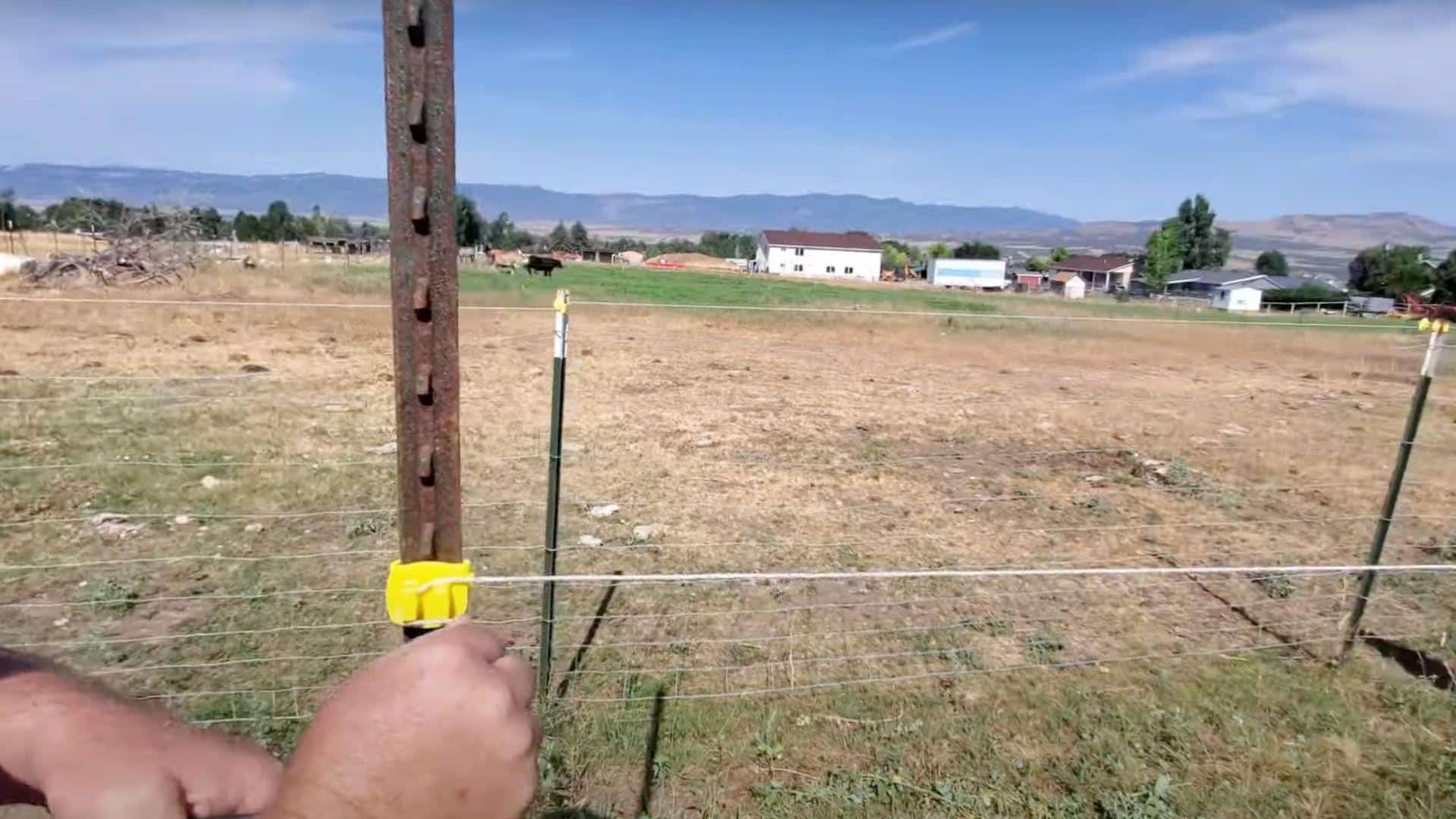

Step 1: Installing Fence Posts
Mark your fence line with spray paint or flags to visualize the layout. Space posts 8-12 feet apart for most applications, with closer spacing on hills or corners where extra support is needed.
Drive posts 2-3 feet deep using a post driver or hammer. For permanent fences, use a post hole digger to create clean holes. Make sure posts are plumb and firmly set before moving to the next location.

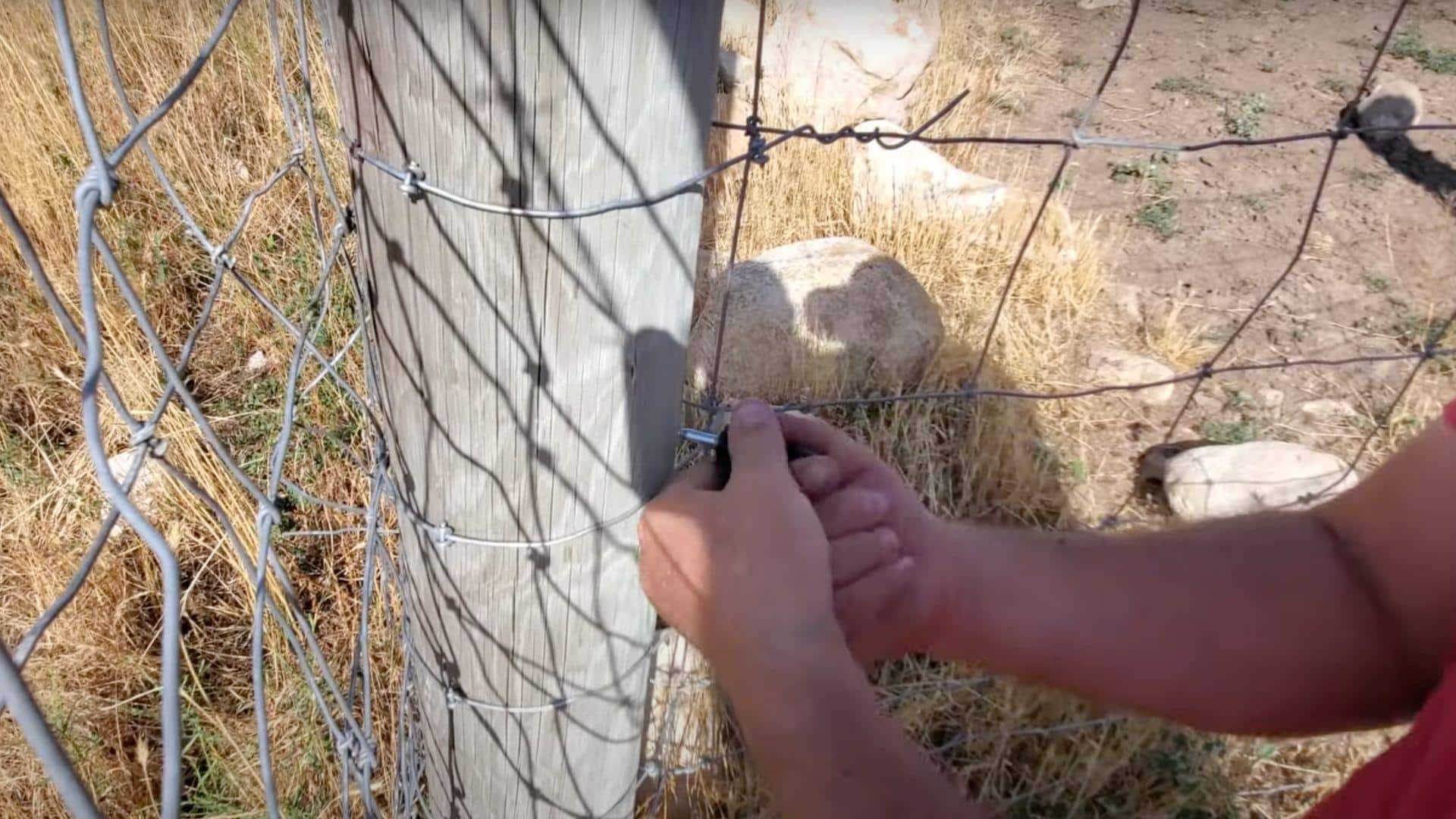

Step 2: Attaching Insulators to Posts
Install insulators on the side of posts facing your animals. This prevents accidental contact when animals rub against posts.
Position insulators at the same height on each post for a clean, professional look. Use a measuring tape or a string line to maintain a consistent height across the entire fence line.

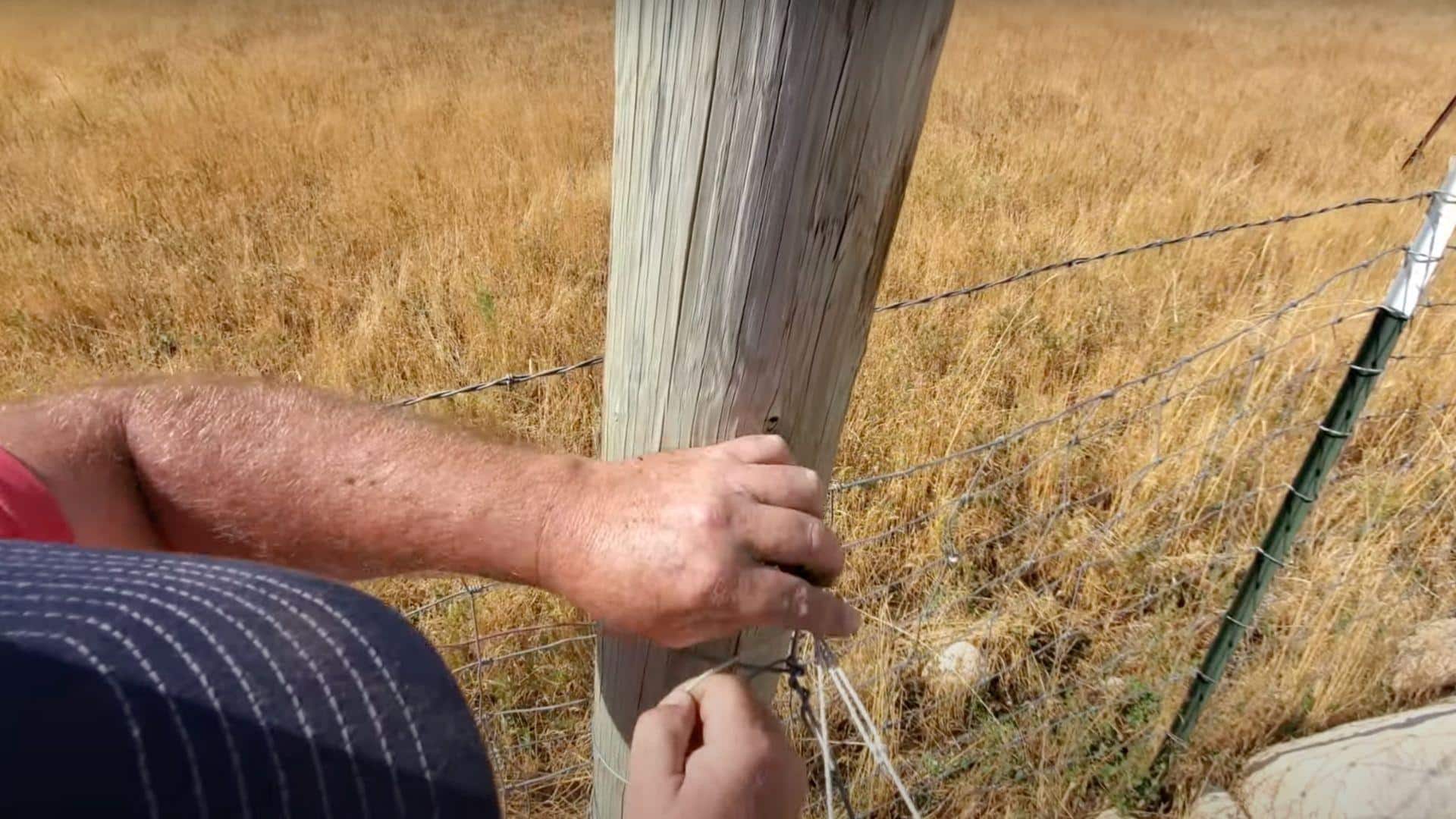

Step 3: Stringing and Securing the Electric Wire
Start at one corner and work your way around the fence perimeter. Thread the wire through each insulator without pulling it tight yet.
Use wire tensioners at corners and every 500 feet on long runs. Adjust the tension so the wire is firm but not overly tight—you should be able to deflect it 2-3 inches with moderate finger pressure.

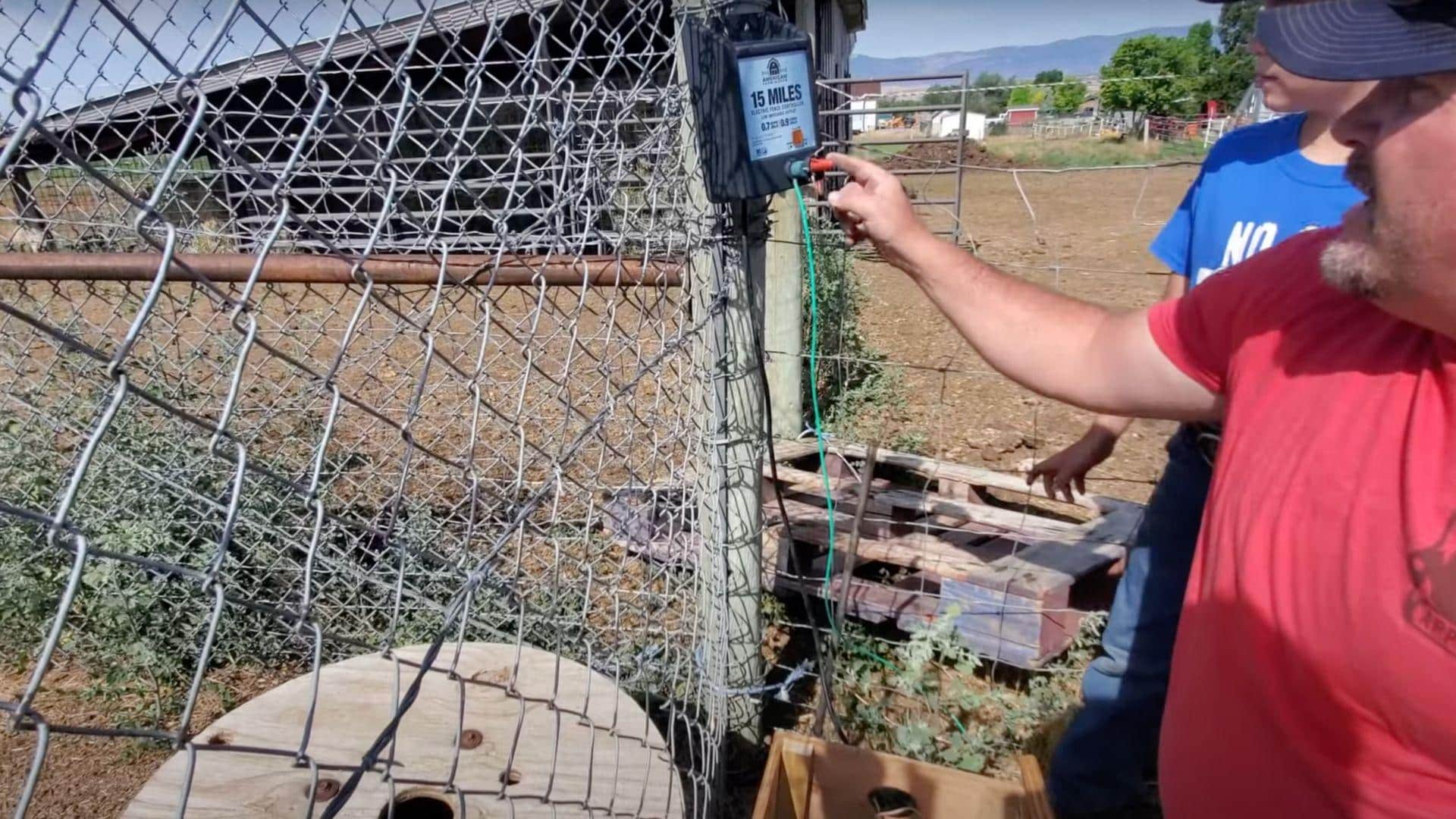

Step 4: Connecting the Energizer
Mount your Energizer in a dry, protected location within reach of your fence and power source. Most energizers work best when installed at least 6 feet from metal objects.
Connect the positive terminal to your fence wire and the negative terminal to your ground system. Follow the manufacturer’s instructions for your specific Energizer model.
Step 5: Installing the Ground Rod
Drive ground rods at least 6 feet deep in moist soil if possible. For dry conditions, you may need multiple rods spaced 10 feet apart.
Connect the ground wire from the energizer to each ground rod using approved clamps. Poor grounding causes most electric fence failures, so don’t cut corners on this step.

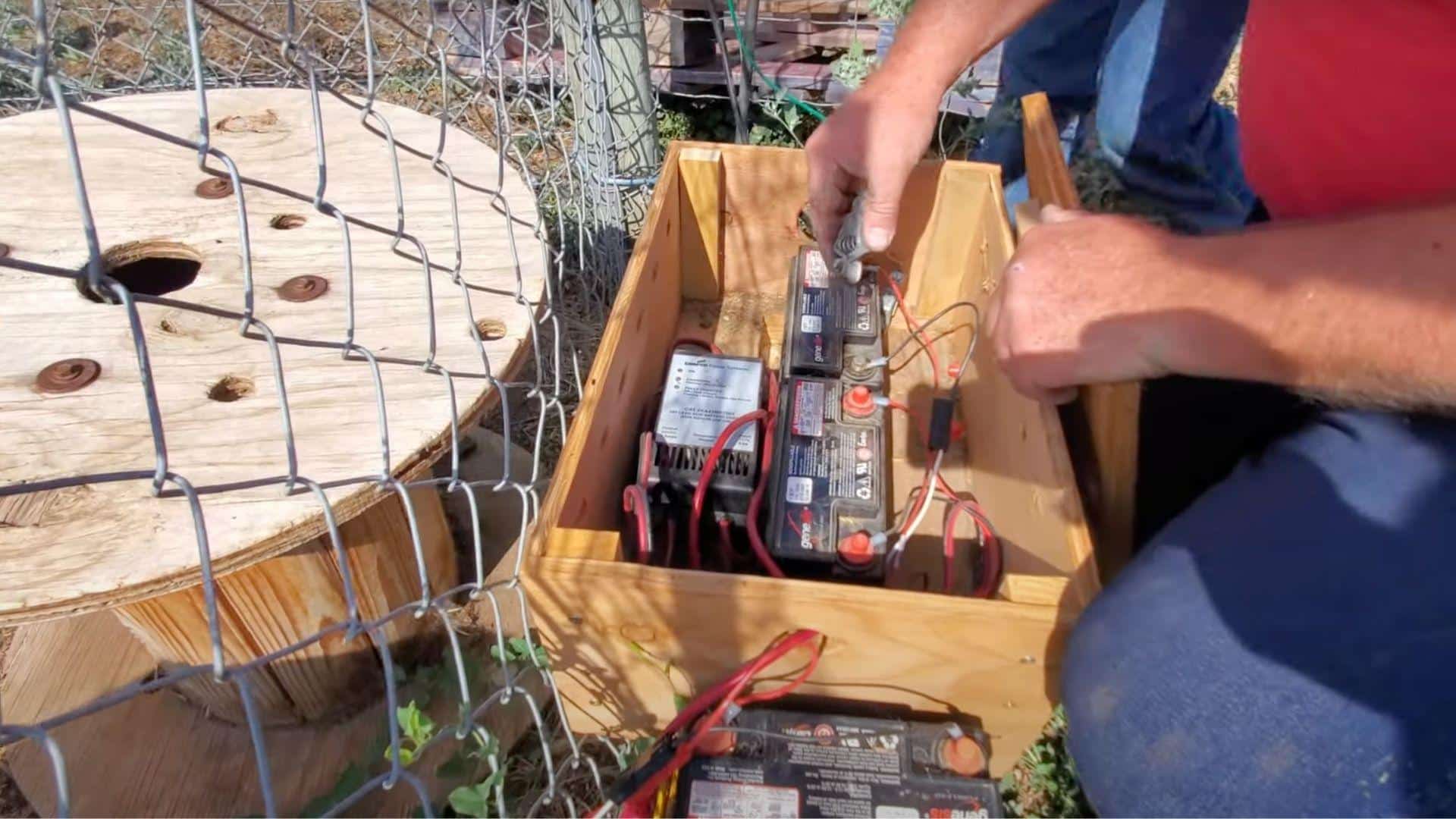

Step 6: Testing the Fence
Turn on your energizer and test the voltage at multiple points along the fence using a voltage tester. You should see 4,000-6,000 volts on most livestock fences.
Test both the fence wire and the ground system. Touch one probe to the fence wire and push the other into the ground – you should get a strong reading.
Step 7: Troubleshooting and Adjustments
Walk your entire fence line looking for problems. Check for loose connections, damaged insulators, vegetation touching the wire, or broken wire sections.
Fix any issues you find, then retest the fence voltage. Make adjustments until you achieve consistent power throughout the entire fence system.
Video Tutorial
Check out the video for more insights! Watch a step-by-step demonstration of the installation of an electric fence.
By – High Deseret Ranch
Fence Planning and Wire Spacing
Proper planning saves time and prevents costly mistakes during installation. Different animals also require specific fence configurations to be effective.
Essential Planning Steps
- Draw a simple map of your property showing fence lines, gates, and corners
- Mark underground utilities by calling your local utility marking service before digging
- Choose gate locations based on daily access needs and equipment movement
- Measure total fence length to calculate material requirements accurately
Wire Height Guide by Animal:
| Animal Type | Number of Wires | Wire Heights (from ground) |
|---|---|---|
| Horses | 2-3 wires | 24″, 40″, 48″ |
| Cattle | 1-2 wires | 26″, 36″ |
| Sheep/Goats | 3-5 wires | 6″, 12″, 18″, 30″, 36″ |
| Pigs | 2-3 wires | 6″, 12″, 18″ |
Adjust heights based on your specific animal sizes and local conditions. Young animals may need additional lower wires for effective containment.
Safety Tips and Maintenance
Electric fences are generally safe when installed correctly, but following basic safety rules protects both people and animals. Regular maintenance keeps your fence working efficiently and prevents costly repairs.
- Always turn off the energizer before working on any part of your fence system.
- Post warning signs every 30 feet to alert people about the electric fence
- Check voltage monthly using a digital fence tester at multiple fence locations
- Clear vegetation that grows into or near your fence wire to prevent power loss
- Inspect connections regularly for loose wires, damaged insulators, or corrosion
- Replace damaged sections immediately to maintain consistent power throughout the fence
- Test your ground system annually to ensure proper electrical circuit completion
Conclusion
Installing an electric fence isn’t as complicated as it first appears. With the right materials and a step-by-step approach, most people can complete a basic installation in one weekend.
The key to success lies in proper planning and attention to detail during installation. Take time with each step, especially the grounding system, since this determines how well your fence will work.
Regular maintenance keeps your fence running smoothly for years. Monthly voltage checks and occasional vegetation clearing prevent most problems before they start.
Remember that a well-installed electric fence is both an effective barrier and a safe one. Follow the safety guidelines, test your system regularly, and you’ll have a reliable fence that serves your needs for many years to come.
Frequently Asked Questions
What Are the Disadvantages of An Electric Fence?
Electric fences require regular maintenance, local council approval, and constant vegetation management around the fence line to function properly.
What Is the Life Expectancy of An Electric Fence?
Permanent high-tensile electric fences with pressure-treated posts typically last 35 to 40 years with proper maintenance and care.
How Much Does It Cost to Install an Electric Fence?
Installing an electric fence costs between $2 and $6 per linear foot, including materials and labor for most installations.
