What Is a Catch Basin and How Do You Install It?

Water has a way of finding the worst possible places to pool. Your driveway turns into a lake. Your basement gets flooded. Your foundation starts showing ugly stains and cracks.

Thousands of homeowners face the same frustrating problem every time it rains. The good news is there’s a proven solution that cities have used for decades.

Enter the catch basin, your property’s first line of defense against water damage. This simple but effective system stops flooding before it starts.

It protects your home, saves your landscaping, and gives you peace of mind during storm season.

In this guide, you’ll learn exactly what a catch basin is, how it works, and whether you need one. We’ll cover Types, installation measures, components, and help you choose the right type for your property.

What is a Catch Basin?

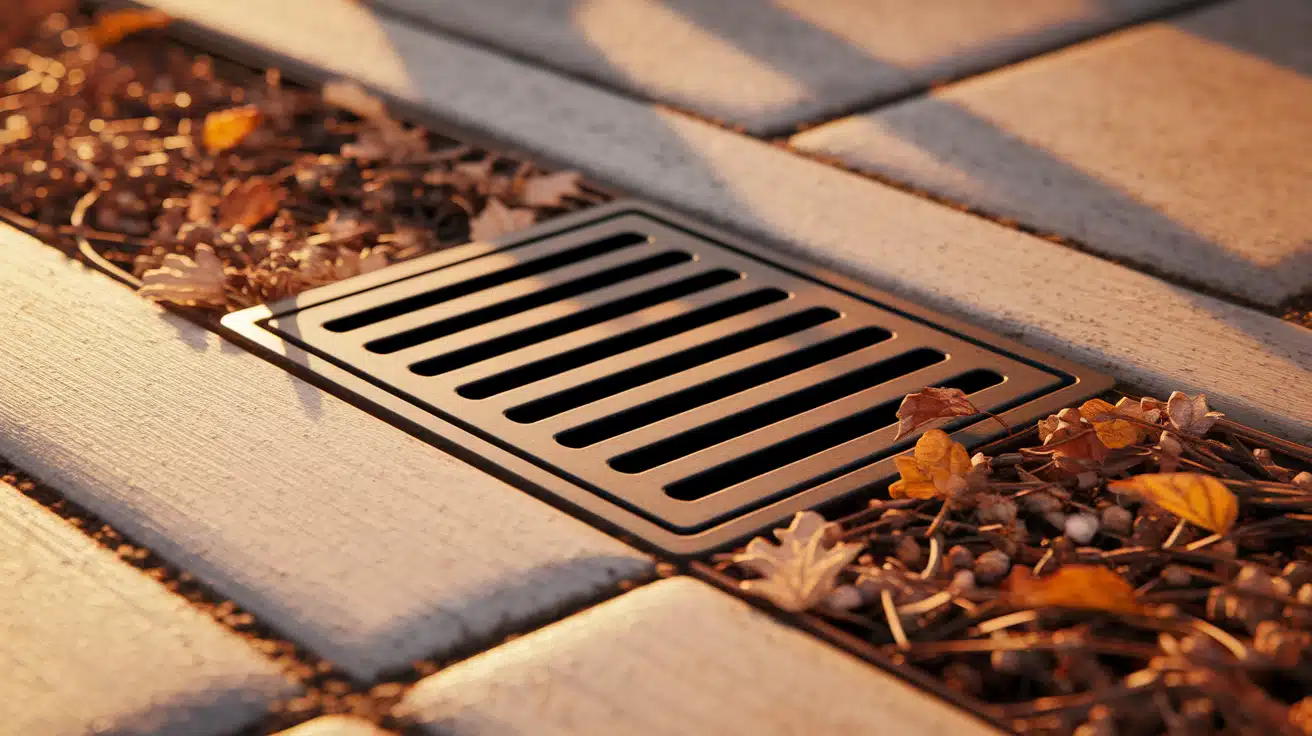

A catch basin is a drainage structure that collects rainwater, melted snow, and debris from streets, parking lots, and lawns.

Think of it as a large gutter with a built-in trash filter. Its main job is to prevent flooding by catching water before it causes problems. The basin removes dirt, leaves, and other debris from the water.

Then it sends the cleaner water into storm sewer systems. This simple but effective system protects your property from water damage. It also keeps our storm drains from getting clogged with trash and debris.

Types of Catch Basins

Catch basins are available in various styles to suit different needs and locations. The type you need depends on where you plan to install it and how much water it must handle.

By Application

  • Residential catch basins are smaller systems made for homes and small properties. They handle water from driveways, patios, and small lawn areas. These basins work well for typical family drainage needs.
  • Commercial and municipal catch basins are designed for larger areas, such as shopping centers and city streets. They can handle much more water flow. These systems are stronger and last longer than home versions.
  • Parking lots and roadway basins are designed for areas with heavy traffic. They must be strong enough to support cars and trucks driving over them. These basins also handle oil and other road chemicals.

By Design Type

  • Type M-1 is a precast catch basin with a single grate inlet. This type is most common in residential settings. It’s smaller, easier to install, and costs less than other options.
  • Type M-2 basins are deeper and larger than M-1 systems. They include manhole access for easier cleaning and maintenance. Commercial and municipal areas typically use this type because it handles more water.
  • Custom-designed systems are built for special situations. Engineers design these based on your specific terrain and drainage needs. They work best when standard options won’t solve your water problems.

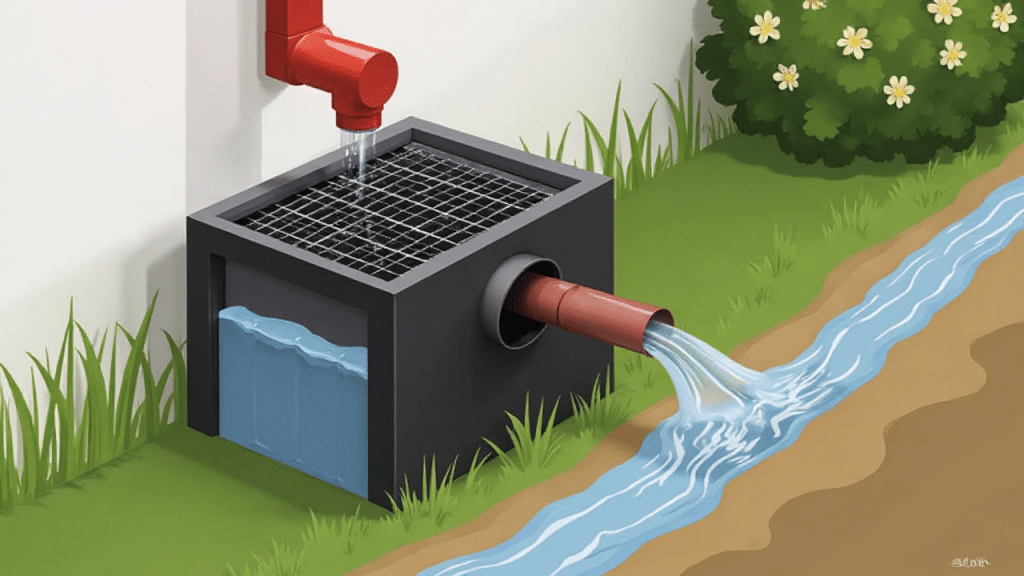

How Does a Catch Basin Work?

How-Does-a-Catch-Basin-Work

A catch basin works through a simple three-step process that cleans water naturally.

First, rainwater and runoff enter through the grated inlet at the top. Next, heavy debris, such as leaves, dirt, and trash, settles at the bottom of the sump chamber, where it remains trapped.

Finally, the cleaner water flows out through the outlet pipe and into the storm sewer system. This process happens automatically every time it rains.

The basin acts like a settling tank, separating clean water from pollutants before it is sent downstream.

Key Components of a Catch Basin

Every catch basin has four main parts that work together to manage water flow:

  • Grate/Inlet Cover – The metal grid on top that lets water in while keeping large debris out. It also provides a safe surface for people and vehicles to walk or drive over.
  • Sump or Basin Chamber – The underground container that holds water temporarily. This is where heavy debris settles and gets trapped at the bottom.
  • Outlet Pipe – The drain that carries filtered water away from the basin into the storm sewer system. It’s positioned above the sump bottom to allow debris to remain behind.
  • Filter Baskets (Optional) – Removable containers that catch smaller debris, making cleaning easier. Not all basins have these features, but they can help with maintenance.
  • Oil/Water Separators (Optional) – Special chambers that remove oil and chemicals from water. These are mainly used in parking lots and industrial areas where vehicles leak fluids.

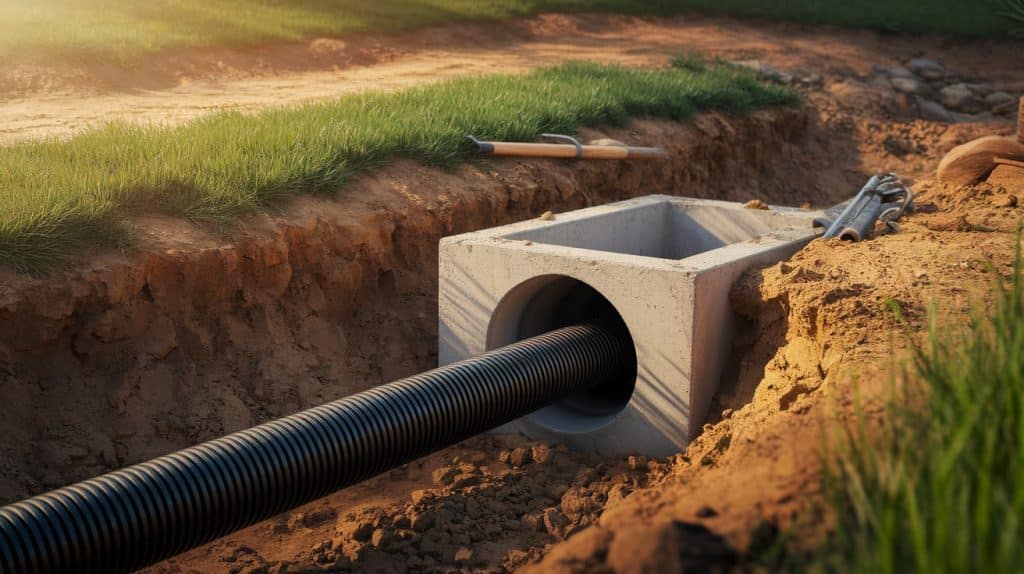

How to Install a Catch Basin?


Learn the process for installing a catch basin, preventing flooding, and enhancing your property’s drainage system with ease.

1. Plan the Location

Find the spot where water naturally collects during heavy rain. This is usually the lowest point in your yard or driveway. Check local building codes for required distances from property lines.

Mark utility lines before digging to avoid damage. Consider future landscaping plans and ensure easy access for maintenance and cleaning.

2. Excavate the Area

To match basin dimensions, dig a hole that’s 6 inches wider than your basin on all sides. Make the hole deep enough for the basin plus 4-6 inches of base material. Keep the sides straight and level.

Save some of the dirt for use as backfill later. Work carefully around existing tree roots and underground utilities to prevent costly damage.

3. Install a Gravel or Concrete Base

Add 4-6 inches of gravel or pour a concrete pad at the bottom. Level and compact the base material firmly. This foundation prevents the basin from sinking over time.

Ensure the base is entirely level before proceeding. Use a spirit level to double-check alignment from multiple angles for perfect installation.

4. Set the Catch Basin Box

Set the catch basin box in place, and lower the basin carefully into the hole using proper lifting equipment. Ensure it sits level and at the correct height. The top should be flush with the final ground surface.

Adjust the base if needed to get perfect alignment. Have a helper guide the basin to prevent it from tilting or being damaged during placement.

5. Attach Drainage Pipes

Attach drainage pipes to the inlet/outlet. Connect the outlet pipe that leads to your storm drain system. Seal all pipe connections with waterproof cement or rubber gaskets. Test connections for leaks before proceeding.

Make sure pipes have a proper slope for water flow. Install cleanout access points if your local code requires them for future maintenance.

6. Backfill with Soil

Backfill with soil and compact. Fill around the basin with soil in 6-inch layers. Compact each layer firmly to prevent settling. Don’t dump all the soil at once, or it won’t compact properly.

Leave space around pipe connections to avoid damage. Water each layer lightly while compacting to achieve better soil density and stability.

7. Place and Secure the Grate

On top, set the metal grate carefully on the rim of the basin. Make sure it sits flush and level with the surrounding surface. The grate should fit snugly but be removable for cleaning.

Check that it can support the expected weight loads. Apply a thin layer of sand around the edges for a perfect fit and easier removal.

8. Test System

With water flow, run water through the system to check for proper drainage. Look for leaks around pipe connections and proper water flow. Make sure water enters easily and exits through the outlet pipe.

Address any issues before completing the installation. Test with different water volumes to simulate various rainfall conditions and ensure proper function.

Note: Professional installation is recommended for large-scale or complex systems.

Advantages and Disadvantages of Catch Basins

Advantages of Catch Basins Disadvantages of Catch Basins
Prevents flooding and water pooling. Requires regular maintenance to avoid clogs.
Reduces property erosion. The initial installation cost can be high.
Protects water quality by filtering pollutants. It can emit foul odors if not cleaned.
Enhances the longevity of driveways and foundations. Ineffective without proper grading and water flow design.
Complies with municipal stormwater management laws. Not suitable for all landscapes or soil types.

Signs You Might Already Need a Catch Basin

  • Visible water damage or mildew at the base of exterior walls – Dark stains or musty odors around your home’s foundation indicate that water is pooling where it shouldn’t.
  • Mold or algae near consistent wet areas – Green or black growth in your yard shows water isn’t draining properly from those spots.
  • Standing water after minor rain – Puddles that stay for hours or days after light rainfall indicate poor drainage in that area.
  • Neighbors installing similar drainage solutions – When multiple homes on your street add catch basins, it usually means the whole area has drainage problems.
  • Water staining or rust lines on pavement – Orange or brown marks on driveways and sidewalks show where water regularly sits and causes damage.

Wrapping It Up

Catch basins are more than just drainage systems; they’re your property’s insurance policy against water damage.

From preventing basement floods to protecting your foundation, these simple structures solve problems that cost thousands to repair.

Don’t wait for water damage to force your hand. If you’re seeing standing water, foundation stains, or soggy patches in your yard, a catch basin can help prevent these issues from worsening.

Remember, installation requires careful planning and proper execution. While DIY is possible for smaller residential systems, complex installations benefit from professional expertise.

Walk around your property after the next rainfall. Look for the warning signs we covered. If you spot water pooling, it’s time to consider a catch basin.

Have questions? Share your specific situation in the comments below!

Frequently Asked Questions

What Is the Purpose of a Catch Basin?

A catch basin collects rainwater and debris from surfaces, filters out trash and sediment, and then sends clean water to storm sewers.

Does Water Sit in a Catch Basin?

Yes, a small amount of water stays in the bottom sump area to trap debris, but most water flows through to the storm system.

What Trap Do I Need for a Basin?

Most catch basins have a built-in sump trap at the bottom that catches debris naturally – no additional trap is needed for basic installations.

How to Secure a Basin?

Secure the basin by proper backfilling with compacted
