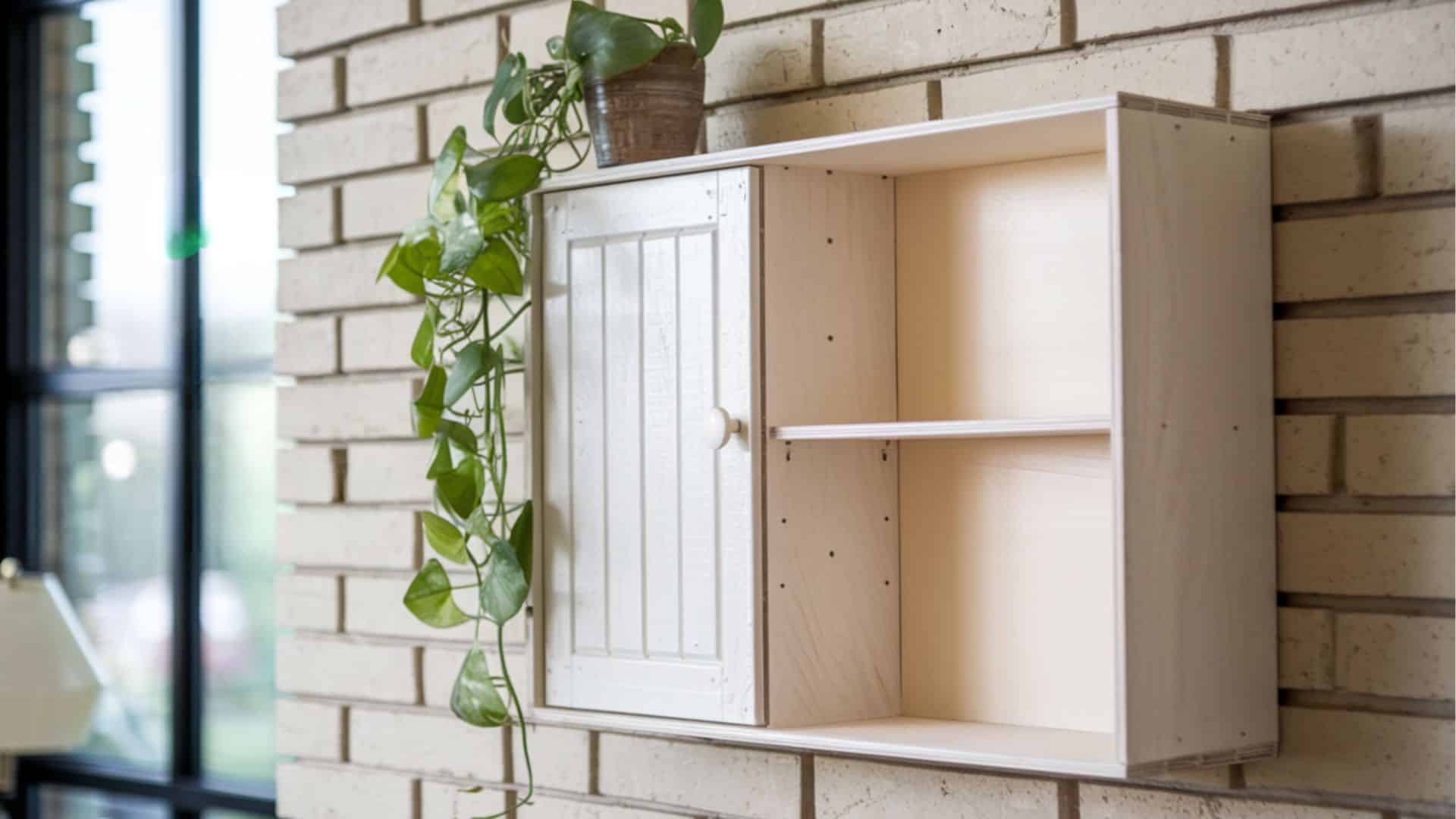

DIY Wall Cabinet: A Comprehensive Tutorial
Are you tired of spending money on store-bought wall cabinets that don’t quite fit your needs?
Building your own wall cabinet might seem challenging, but with basic tools and simple steps, you can create a custom storage solution that matches your space perfectly.
By making your own cabinet, you’ll save money, learn valuable skills, and have the satisfaction of displaying something you built with your own hands.
Plus, you can modify the dimensions and style to suit your exact preferences.
Follow this step-by-step guide to build a wall cabinet that will serve you well for years to come. We’ll show you the exact measurements, tools needed, and techniques to help you succeed in this project.
Tools and Materials Required
Tools Required
| TOOLS | PURPOSE |
|---|---|
| Cutting Tools | |
| Circular saw/track saw | For initial plywood breakdown |
| Table saw | For precise cuts and dados |
| Straight edge | For guided cuts |
| Crosscut sled | For accurate crosscuts |
| Assembly Tools | |
| Pocket hole jig/machine | For joining cabinet parts |
| Drill | For hardware installation |
| Clamps | For holding parts during assembly |
| Brad nailer | For back panel attachment |
| Finishing Tools | |
| Iron | For edge banding application |
| Edge banding roller | For securing edge banding |
| Edge trimmer | For cleaning up edge banding |
| Sanding tools | For smooth finish |
| Measurement Tools | |
| Measuring tape | For part dimensions |
| Shelf pin jig |
For shelf support holes |
Materials Required
| MATERIALS | USE |
|---|---|
| Wood Materials | |
| 3/4″ plywood | Cabinet body construction |
| 1/2″ plywood | Door panels, basic backs |
| 1/4″ plywood | Traditional cabinet backs |
| Pre-surfaced maple | Face frames and door frames |
| Hardware | |
| Hidden hinges | Door mounting |
| Door pulls | Door handles |
| Shelf clips | Support shelves |
| Pocket screws | Join cabinet parts |
| Brad nails | Secure back panels |
| Finishing Materials | |
| Edge banding | Cover plywood edges |
| Wood glue | Join wood parts |
Step-By-Step Process to Build a Wall Cabinet
Step 1: Material Preparation
Begin by breaking down your plywood sheets into manageable pieces using a track saw or circular saw.
Move to the table saw to cut all parts to their final size. Remove factory edges to ensure clean, crisp sides. Set up your pieces to make two 30-inch and two 18-inch cabinets that will later combine into two 48-inch units.
Step 2: Cabinet Body Setup
Start the cabinet construction by drilling pocket holes in the appropriate cabinet parts. Cut rabbets along the back edges of side panels – these will house your back panel.
Mark all bottom edges clearly for proper orientation during assembly. Before moving forward, use your shelf pin jig with a spacer block to drill all shelf pin holes, as this task becomes much harder after assembly.
Step 3: Basic Assembly
Position your bottom panel flush with the cabinet sides. Use clamps to hold everything in place while securing with pocket screws. Follow the same process for the top panel.
Keep your cabinet face-down during this process to keep the rabbets exposed. Check everything for square, then add glue to the rabbets before sliding in your back panel. Finish by securing the back panel with countersunk screws.
Step 4: Face Frame Making
Take your pre-surfaced maple lumber and cut it to length at the chop saw. Move to the table saw to rip all parts to width. Use a crosscut sled for precise final length cuts.
Create pocket holes in your frame parts using a guide clamped to the table. Put the face frame together, then sand the joints to 180 grit for a flush finish. Attach the completed frame to your cabinet using glue and clamps.
Step 5: Door Construction
Cut all door frame parts to a 2-inch width from your pre-surfaced maple. Make final length cuts using the crosscut sled.
Create centered grooves in all frame parts to house your center panel, then form tongues on the top and bottom rails. Cut your half-inch plywood panels and create rabbets around all edges.
Put the doors together by adding glue to the rail tongues and joining with the styles. Let this dry overnight.
Step 6: Door Setup
After your doors have dried, trim the top and bottom joints flush. Install pockets for your European-style hidden hinges. Use a piece of scrap plywood to set the proper reveal at the bottom.
Mount the hinges to the face frame first, then attach your doors. Make any needed adjustments to align the doors properly. Install your door pulls using a door hardware jig.
Step 7: Shelf Making
Start your shelf preparation by adding iron-on edge banding to the front edges. Use a roller to ensure a firm bond, and let the shelves cool.
Trim the edges flush using a double-edged trimmer, then sand any rough spots smooth. Insert your plastic shelf clips into the pre-drilled holes and place your shelves into position.
Step 8: Cabinet Joining
Now it’s time to combine your 30-inch and 18-inch cabinets into 48-inch units. Line up the edges carefully and use clamps to hold everything in place.
Add screws above and below the top and bottom panels where they won’t be visible from inside. Double-check all your final dimensions.
Step 9: Final Check
Complete your project by testing all door operations. Check the stability of your shelves and verify that all hardware is secure. Make any final adjustments to your hinges as needed.
Test all door pulls to ensure smooth operation. This final inspection ensures your cabinet is ready for use.
Video Tutorial
Check out this YouTube video for a detailed step-by-step tutorial on making a wall cabinet.
Common Mistakes to Avoid
1. Measurement and Cutting Errors
Don’t skip measuring twice before cutting. Many woodworkers make the mistake of rushing through measurements.
Ensure your first cuts on plywood sheets are straight – crooked initial cuts affect the entire project. Always account for saw blade thickness when making cuts.
2. Assembly Issues
Avoid forcing pieces together during assembly. If parts don’t fit, recheck your measurements. Don’t skip squaring the cabinet during assembly.
Many skip checking for squares at each step, leading to doors that won’t align properly. Remember to dry-fit everything before adding glue.
3. Hardware Installation
Don’t drill hinge holes without proper measurement and marking. A common error is eyeballing hinge locations rather than using a template. Avoid overtightening screws in pocket holes – this can split the wood or cause joint failure.
4. Edge Banding Mistakes
Many rush through edge banding applications. Let the iron heat properly and move slowly. Don’t trim edge banding until it’s completely cool. Avoid excessive pressure when rolling – it can create bubbles or weak spots.
Maintenance Tips
- Regular Care: Clean cabinet surfaces with a soft, dry cloth. For tougher dirt, use a damp cloth and dry immediately. Never let water sit on wood surfaces. Check and tighten any loose screws or hardware every six months.
- Hardware Maintenance: Oil door hinges annually to prevent squeaking. Adjust European-style hinges if doors become misaligned. Keep door tracks clean and free of debris. Tighten door pulls if they become loose.
- Shelf Care: Check shelf clips periodically for wear or damage. Don’t overload shelves beyond their weight capacity. Rotate items on shelves to prevent permanent indentation marks. Keep heavy items toward the back of shelves for better balance.
- Finish Protection: Keep cabinets away from direct sunlight to prevent fading. Maintain consistent room humidity to prevent wood warping. Use coasters under any items that might scratch the surface. Touch up any chips or scratches promptly to prevent moisture damage.
- Structural Integrity: Monitor the cabinet’s mounting to the wall – check for any looseness. Inspect joints annually for any separation. Look for signs of water damage, especially under sink cabinets. Check back panels for any warping or separation.
Conclusion
Building your wall cabinet brings satisfaction and practical benefits. Through this careful process, from selecting quality materials to final assembly, you’ve learned essential woodworking skills that serve you well in future projects.
The methods we shared work for simple shop storage and refined kitchen cabinets.
You’ve created a lasting piece of furniture by following proper measurements, making precise cuts, and taking time with each step. These cabinets offer more than storage – they show the value of careful planning and attention to detail.
The skills you’ve gained go beyond this single project.
Remember that successful woodworking comes from patience and proper technique. Your new wall cabinet stands as proof of your growing woodworking abilities.
