DIY Shiplap Fireplace: A Comprehensive Tutorial
Does your fireplace look outdated? A plain brick wall can make your living room feel less appealing.
Many homeowners don’t know they can update their fireplace themselves with shiplap – those charming horizontal wooden boards that add texture and style to any wall.
By installing a shiplap around your fireplace, you’ll create a fresh, modern look that will increase your home’s value and make your living space more inviting.
The best part? You can complete this project over the weekend with basic tools.
Follow our step-by-step guide to transform your fireplace into a beautiful focal point.
We’ll show you exactly what materials you need, how to measure correctly, and the proper techniques to ensure professional-looking results.
Tools and Materials Required
Tools Required
| Tool | Purpose |
|---|---|
| Circular Saw | Cutting shiplap and lumber |
| Brad Nailer | Installing shiplap and trim |
| Level | Ensuring straight installation |
| Measuring Tape | Taking accurate measurements |
| Screwdriver | Securing frames and mounts |
| Jigsaw (Optional) | Cutting firebox opening |
| Square | Checking frame alignment |
| Pencil | Marking measurements |
Materials Required
| Material | Purpose |
|---|---|
| 2×4 Lumber | Wall framing and support |
| Shiplap Boards | Main wall covering |
| 1×3 MDF Boards | Trim work |
| 1¼ inch Brad Nails | Securing shiplap and trim |
| Wood Screws | Frame assembly |
| Electric Fireplace Insert | Main heating unit |
| Paint | Final finish |
| TV Mount (Optional) | Display mounting |
| Wood Filler | Covering nail holes |
| Sandpaper | Smoothing filled holes |
| Caulk | Sealing gaps |
| Primer | Pre-paint preparation |
How to Build a DIY Shiplap Fireplace: Step-by-Step Tutorial
Step 1: Planning and Preparation
Before starting the project, read through your fireplace installation manual thoroughly. Note that you need to maintain 12 inches of space between the firebox’s top and the mantel’s bottom.
Remove all baseboards from the installation area. Take precise measurements of your wall space to ensure proper fit.
Step 2: Build Back Wall Frame
Start by building a frame using 2×4 lumber. Place a middle 2×4 at your desired firebox height. Add shorter studs at the sides to create proper width clearance for the firebox.
Use your measuring tape to check that the frame is square by measuring opposite corners – they should be equal. Add additional studs at the top section to support your TV mount and mantel.
Step 3: Install Wall Frame
Position your completed frame against the wall where you want your fireplace. Make sure it’s level and plumb.
Locate the wall studs and secure your frame directly to them using wood screws. Double-check that the frame remains level after securing it.
Step 4: Create Depth
Measure and cut 2×4 blocks to create a 12-inch depth for your fireplace structure. Attach these blocks between your back wall frame and what will become your front frame. Make sure all connections are secure and square.
Step 5: Apply Shiplap
Begin your shiplap installation with the bottom row – this must be perfectly level as it sets the foundation for all other rows. Use 1¼ inch brad nails to secure each board.
Work your way up the wall, maintaining level lines. When you reach the firebox area, carefully measure and cut the opening.
Step 6: Install Mantel
Secure a 2×4 support piece to your front frame. Add a second 2×4 that will serve as the mantel rest. Create and install blocking behind where the mantel will sit – this provides extra support.
Place your mantel and secure it properly. Continue adding shiplap above the mantel to complete the wall covering.
Step 7: Add Trim Work
Install 1×3 MDF trim boards at the top and bottom of your fireplace structure. Start with the side pieces, then add the front pieces.
Secure the trim at the corners and along the back edges where the structure meets the wall. Use brad nails for a clean finish.
Step 8: Complete Finishing Work
Paint your entire structure, making sure to fill any nail holes first. If you’re mounting a TV, install the mount according to the manufacturer’s instructions.
Place your electric fireplace insert into the opening. Check that it’s level and that all lines run parallel with your shiplap installation. Attach the front panel of your fireplace to complete the project.
Video Tutorial
Check out this YouTube video for a detailed step-by-step tutorial on making a shiplap fireplace.
How to Maintain Your Shiplap Fireplace
1. Regular Cleaning Routine
Keep your shiplap fireplace fresh with simple weekly cleaning. Use a soft, dry cloth to remove surface dust and dirt.
Avoid using water or wet cleaning methods since moisture can harm the wood structure. Apply a barely damp cloth for tough spots and dry the area immediately.
2. Inspect Seams and Joints
Set aside time every three months to examine the spaces between shiplap boards. Search for any gaps or areas that might be pulling apart.
Apply wood putty to small openings as soon as you spot them. This simple step prevents drafts and maintains the clean look of your fireplace.
3. Paint Touch-Ups
Stay alert for paint wear on your fireplace surface. Fix small chips and peels as soon as you notice them using your matching paint.
Store leftover paint from your project for these fixes. Before adding new paint, sand the spot gently to help the paint stick better.
4. Electric Insert Care
Clean the vents of your insert each month using the brush on your vacuum. Use only approved cleaning products on the glass front of your fireplace.
Make time to examine all power cords for signs of wear. Test different heat settings to ensure proper function. Remove dust from areas around fans to keep air moving well.
5. Protect the Wood Surface
Set your heat to the levels listed in your manual. Set items on the mantel with care to protect the wood finish. Put protective pads under any items you display.
Never slide objects across the wood finish. Set up candle holders that catch wax drips.
6. Monitor Temperature Effects
Take time to check how heat affects your wood surfaces. Focus extra attention on the areas close to your firebox. Write down any changes in the wood shape or color. Lower your heat settings if you notice any issues developing.
7. Seasonal Checks
Make spring your time for total surface cleaning. Use summer to look closely at paint conditions while the fireplace sits idle.
Run heating tests when fall arrives to prepare for cold weather. Keep watch over daily operations through winter months to catch issues early.

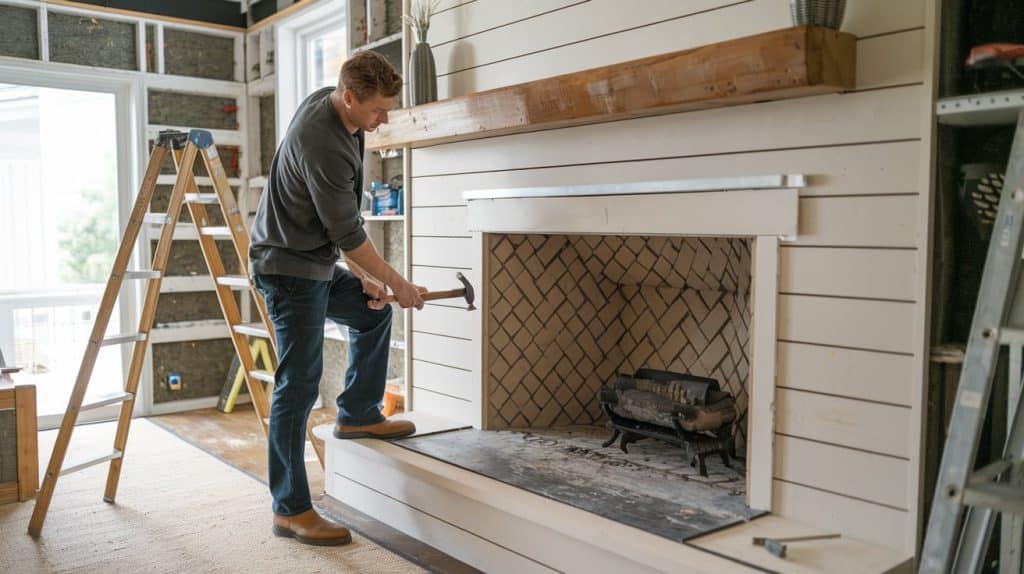

Top Mistakes to Avoid During Construction
- Starting Without Planning: Rushing into the project without proper plans causes problems. Take time to measure your wall space twice. Map out electrical outlet spots. Write down all measurements before buying materials.
- Poor Wall Preparation: Check and mark every wall stud before you start. Test the wall for level. Remove baseboards with care. Fix any wall damage first. Clean your work area thoroughly.
- Material Selection: Pick strong lumber for framing. Choose quality shiplap boards. Buy extra materials for mistakes. Use the right screws and nails. Store materials in your room for 24 hours before use.
- Installation Errors: Make your first shiplap row level. Test each board’s fit. Keep spaces even between boards. Cut cleanly around outlets. Let wood adjust to room warmth before use.
- Future Access Planning: Leave room for electrical cords. Create spots to reach wires later. Plan for cable boxes and gaming units. Think about future repairs.
- Safety Steps: Follow fireplace manual rules. Build strong mantel support. Check local building rules. Test your TV mount. Keep heat away from wood parts.
- Finish Work: Fill nail holes neatly. Sand between paint layers. Close gaps with caulk. Paint with care. Make clean trim corners.
Conclusion
Building a shiplap fireplace changes more than just your wall. It brings warmth and style to your family gatherings. You can create this beautiful addition to your home with proper planning and attention to detail.
Remember to focus on accuracy in your measurements and levelness in your installation. These small details make a big difference in the final look. Take time with each step, from the first frame to the last coat of paint.
Your new fireplace will become the heart of your living space. As seasons change, you’ll find yourself gathering around it, making memories with loved ones.
Your effort to build it properly will reward you with years of comfort and satisfaction.
