Clearance Toilet Rough-In Dimensions: A Complete Guide

When planning a bathroom remodel or installing a new toilet, understanding clearance toilet rough-in dimensions is essential.

These measurements determine how much space is needed between the wall and the toilet’s waste outlet, ensuring a proper fit and comfortable use. Whether you’re a DIY enthusiast or working with a professional plumber, knowing these dimensions helps avoid costly mistakes and ensures your bathroom layout is both functional and aesthetically pleasing.

In this complete guide, we’ll walk you through everything you need to know about toilet rough-in sizes, how to measure them accurately, and tips for choosing the right toilet for your space.

Get ready to make your bathroom project smoother and more efficient with our expert advice!

What is a Toilet Rough-In?

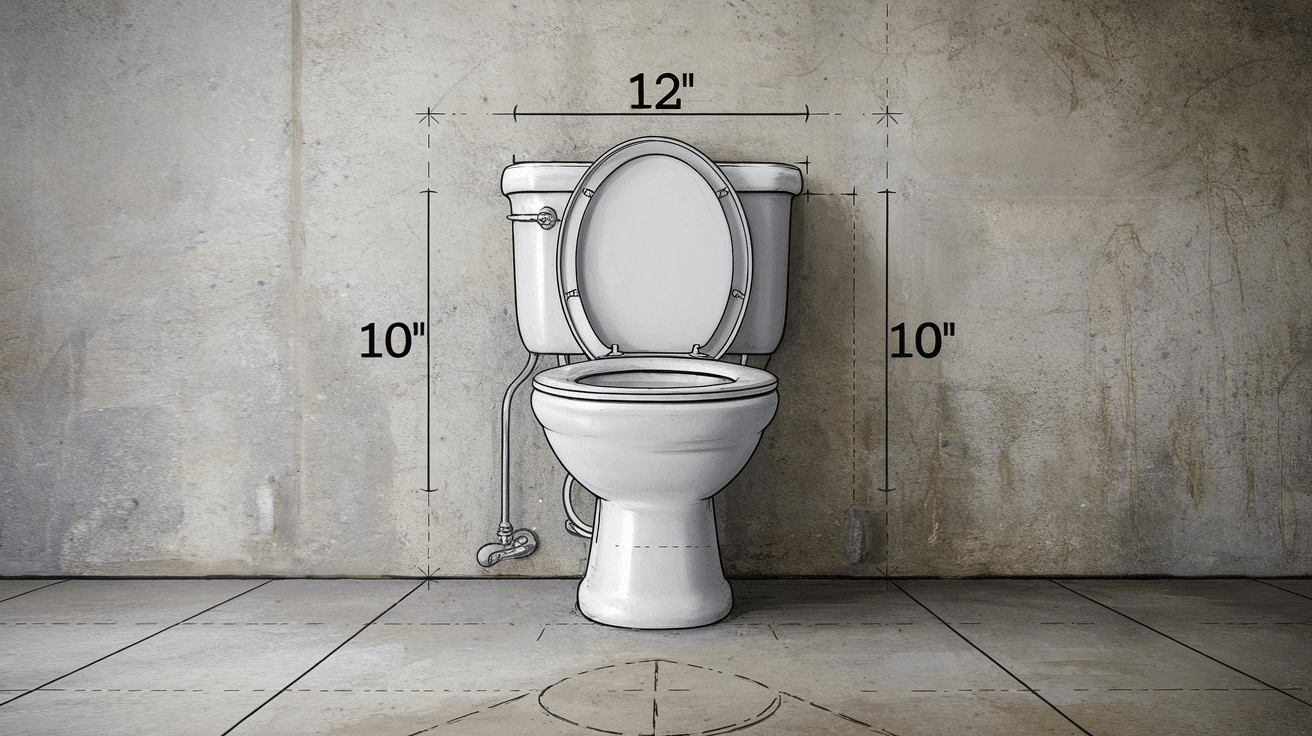

Toilet rough-in refers to the distance from the center of the toilet’s drain or waste outlet to the finished wall behind it, and it is a crucial measurement for ensuring a toilet fits properly in your bathroom. The rough-in dimension determines where your toilet will be positioned and how it connects to the plumbing system, making it essential for both new installations and replacements.

• The standard rough-in measurement for toilets in the U.S. is 12 inches, but some homes-especially older ones-may have 10-inch or 14-inch rough-ins.

• Rough-in size directly affects which toilets will fit your bathroom; a mismatch can prevent proper installation or require costly plumbing changes.

• During the rough-in stage of plumbing, pipes, drain lines, and vents are installed before walls are closed, setting the foundation for fixture placement, including toilets.

• Accurate rough-in ensures the toilet aligns with the drain and sits the correct distance from the wall, impacting comfort, code compliance, and ease of use.

Understanding your toilet’s rough-in measurement is the first step toward a successful bathroom installation or renovation.

By knowing this key dimension, you can confidently choose a toilet that fits perfectly, avoid unexpected plumbing challenges, and ensure your bathroom remains both functional and comfortable. Taking the time to measure and plan around the rough-in will save you time, money, and frustration in the long run.

Step-By-Step Guide: Toilet Rough in Dimensions

Tools and Materials:

Tool/Material	Purpose
Measuring tape	For accurate rough-in and clearance measurements
Pencil or marker	Marking measurement points
Paper	Recording measurements
Level	Ensuring the floor and toilet are even
Painter’s tape	Temporarily marking bolt locations
Adjustable wrench	For installation/removal (not for measuring)
Safety gloves	Protection during installation/removal

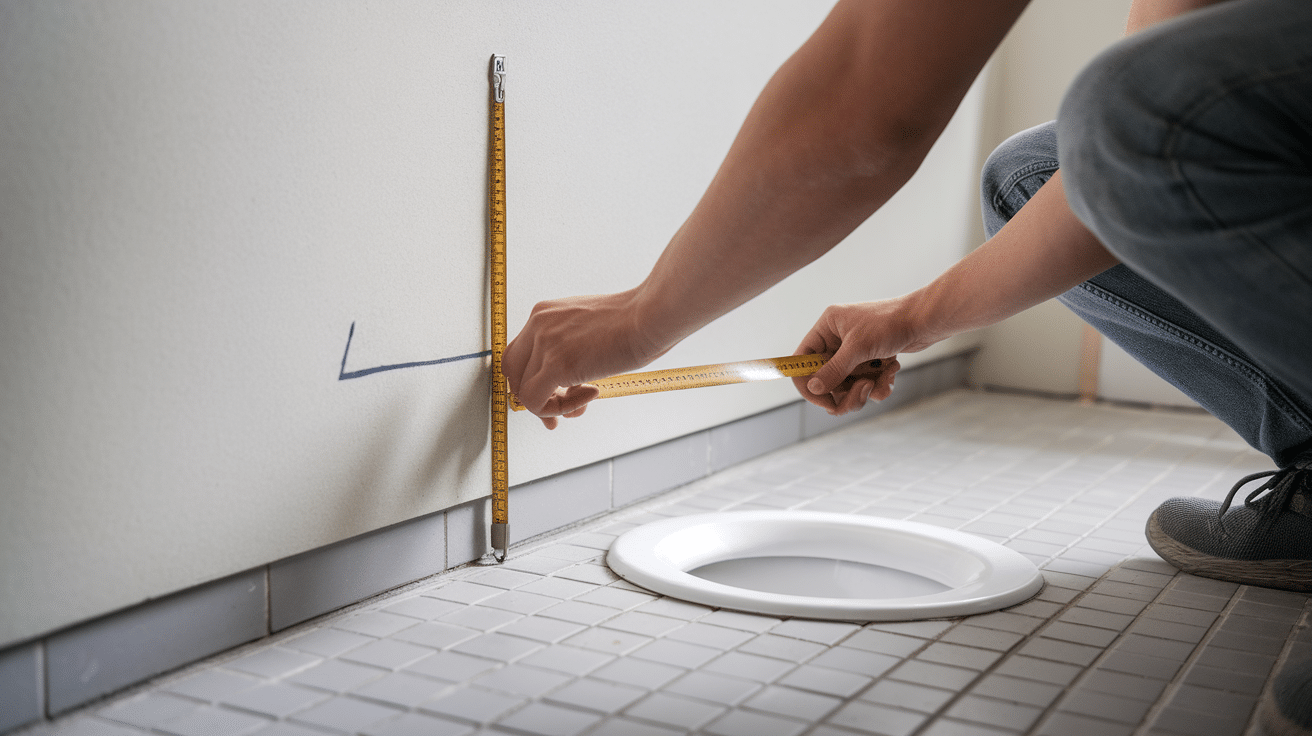

Step 1: Measure the Rough-In

Start by finding the bolts at the base of your existing toilet or, if the toilet is removed, the center of the drain flange. Use a measuring tape to determine the distance from the finished wall (not the baseboard) to the center of the bolts or flange. This is your rough-in measurement, which is typically 10, 12, or 14 inches.

• Use a sturdy tape measure for accuracy.

• Always measure from the finished wall, not the baseboard.

• Mark the spot and double-check your measurement.

Pro Tip: Take a photo of your measurement for reference when shopping for a new toilet.

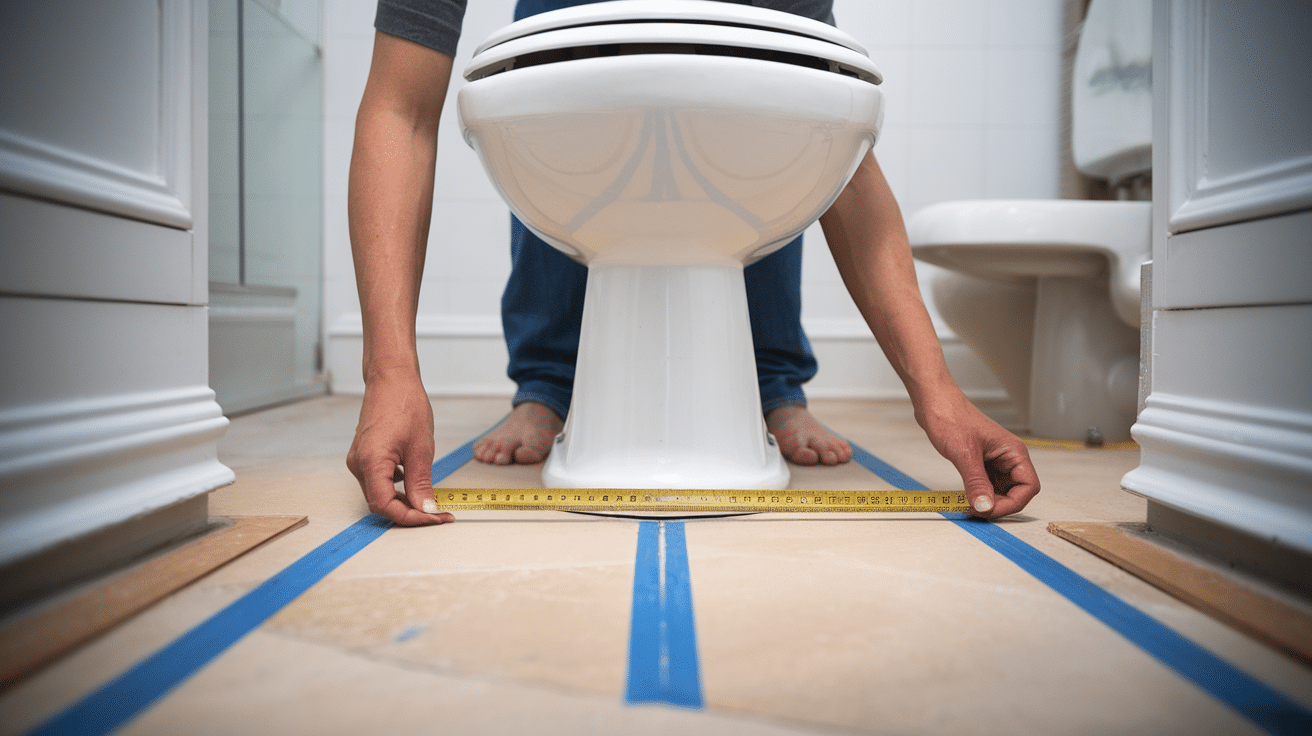

Step 2: Check Side Clearance

Measure from the center of the toilet flange to the nearest wall or fixture on each side. This ensures there’s enough space for comfort and to meet building codes. The minimum requirement is 15 inches on each side.

• Measure from the flange center, not the edge.

• Check both sides to ensure symmetry.

• Mark the clearance with painter’s tape for a visual guide.

Pro Tip: If possible, allow 18 inches on each side for a more spacious feel.

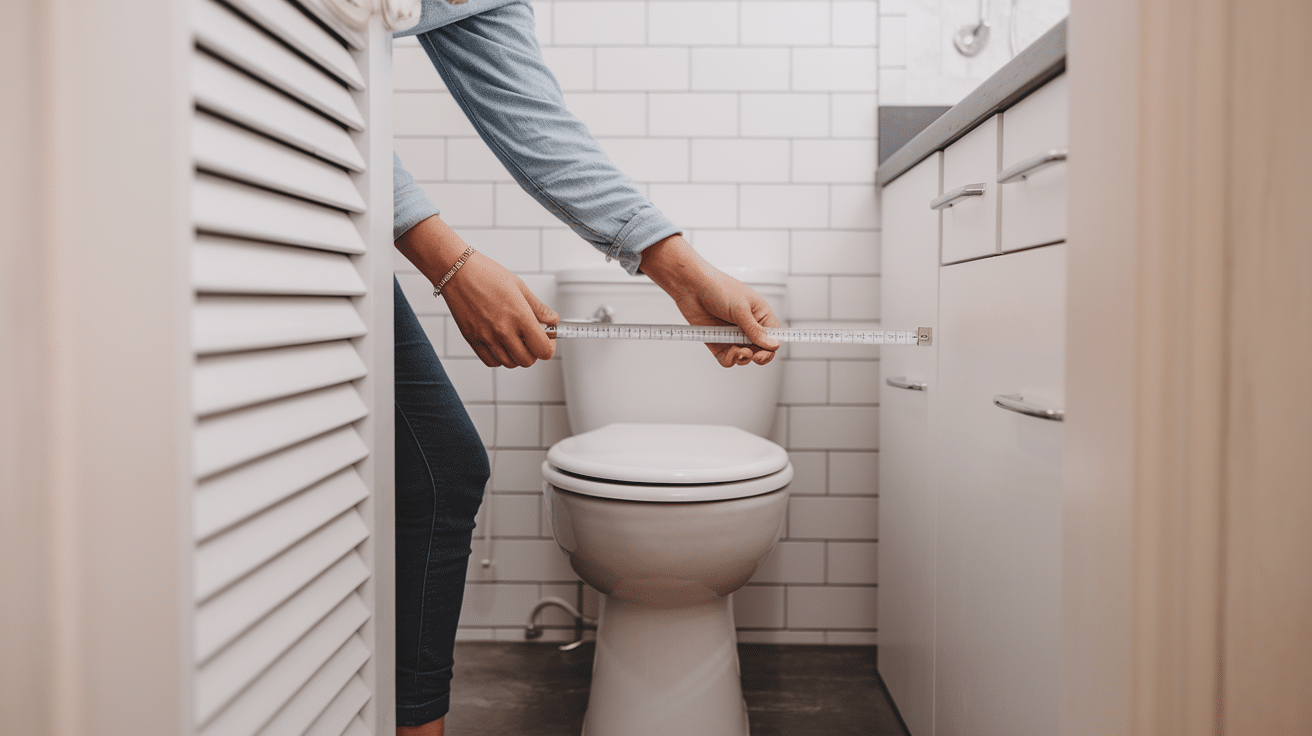

Step 3: Check Front Clearance

Measure from the front edge of the toilet bowl to the nearest obstruction, such as a wall, door, or vanity. This space is crucial for comfortable use and accessibility, with a minimum of 21 inches recommended.

• Use the longest part of the bowl for measurement.

• Open doors or drawers to check for interference.

• Record the measurement for planning.

Pro Tip: Aim for 24 inches or more if space allows for easier movement.

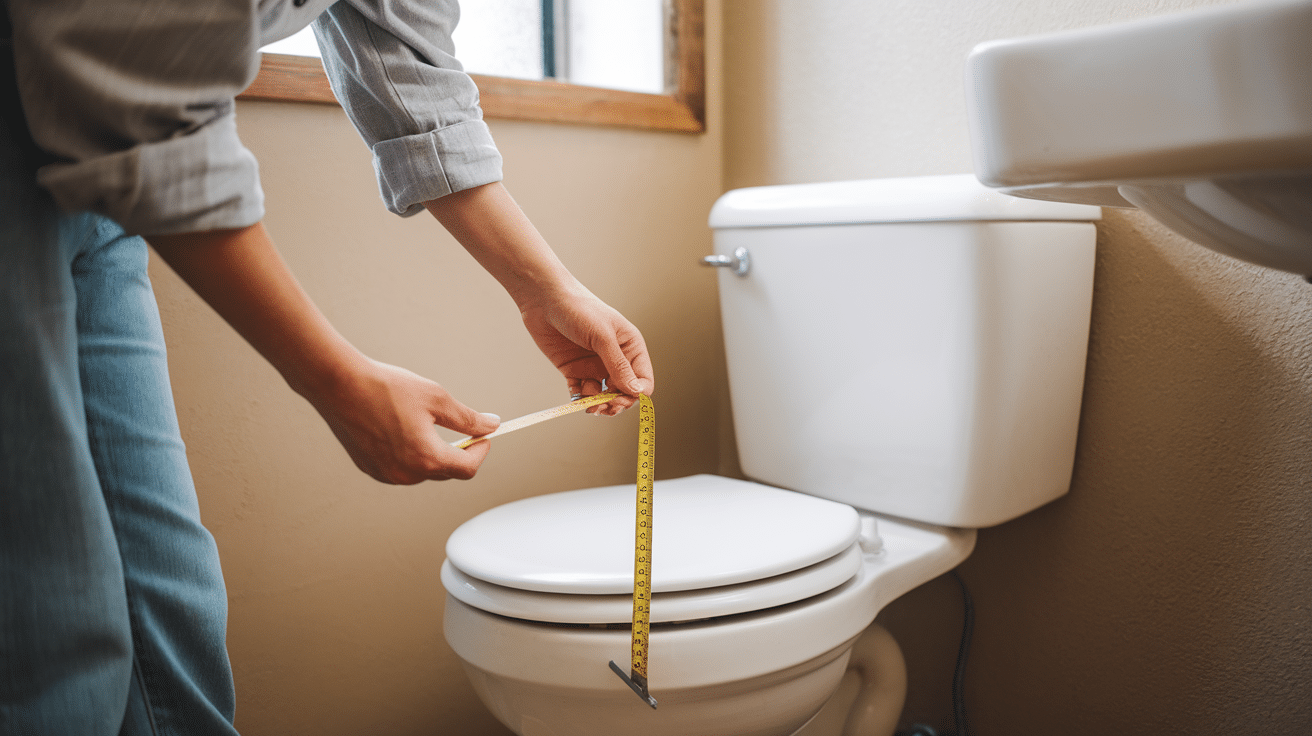

Step 4: Measure Bowl and Tank Dimensions

Check the length, width, and height of the toilet bowl and tank to ensure the new toilet will fit your space. This step is especially important in small or uniquely shaped bathrooms.

• Measure the widest and longest points of the bowl and tank.

• Compare these to your available space.

• Note any height restrictions, such as shelves or windows.

Pro Tip: Bring your measurements to the store to compare with display models.

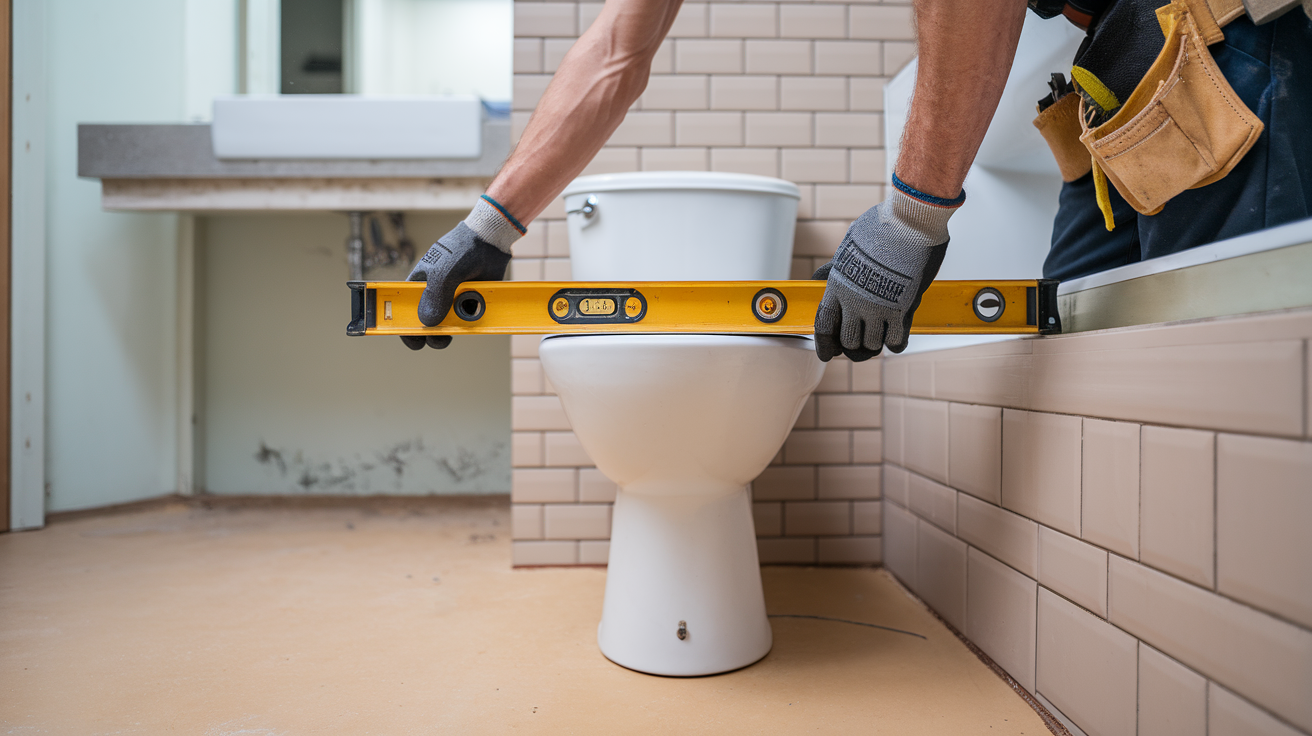

Step 5: Use a Level

Place a level on the floor and across the flange to confirm the installation surface is even. An uneven floor can cause the toilet to rock or leak.

• Check the level in multiple directions.

• Shim the flange if necessary.

• Ensure the area is clean and free of debris.

Pro Tip: If the floor isn’t level, address it before installing the new toilet to prevent future problems.

Minimum Clearance Requirements Around Toilets

1. Side Clearance: At least 15 inches from the center of the toilet to any side wall, partition, or fixture is required. This means a total width of at least 30 inches for the toilet area. While 15 inches is the minimum, 18 inches or more is recommended for greater comfort.

2. Front Clearance: There should be at least 21 inches of clear space from the front edge of the toilet to any obstruction, such as a wall, door, or fixture. Some codes and recommendations suggest 24 inches or more for easier access.

3. Distance from Back Wall: The rough-in dimension (commonly 12 inches) determines the distance from the finished wall to the center of the drain, but the toilet tank itself will usually sit a few inches from the wall, depending on the model.

4. Between Fixtures: If placing toilets next to other fixtures, allow a minimum of 30 inches center-to-center between adjacent toilets or other plumbing fixtures.

Common Mistakes

• Measuring from the baseboard or molding instead of the finished wall is a frequent error, leading to inaccurate rough-in dimensions and poor toilet fit.

• Failing to double-check measurements or record them immediately can result in buying the wrong size toilet, causing installation delays and returns.

• Overlooking potential obstructions like baseboards, pipes, or existing fixtures can prevent the toilet from fitting properly or meeting clearance requirements.

• Not measuring to the center of the flange or bolts, but instead to the edge, can throw off the rough-in distance and compromise installation accuracy.

• Assuming all toilets use a 12-inch rough-in without verifying your space can lead to mismatches, especially in older homes where 10-inch or 14-inch rough-ins are common.

Conclusion

Understanding clearance toilet rough-in dimensions is key to a smooth and successful bathroom installation or remodel.

Accurate measurements ensure your new toilet fits perfectly, functions properly, and complies with building codes.

By following the guidelines for rough-in sizes, clearance space, and proper measuring techniques, you can avoid costly mistakes and enjoy a comfortable, efficient bathroom layout. Whether you’re upgrading or replacing, taking the time to measure carefully will save you time, money, and hassle.

Ready to get started? With these tips, your toilet installation is sure to be a success!
